25-150um Black White Stainless Steel Laser Cutting Film For BA 2B
Surface 304 And 430
Haoen’s Stainless Steel Protection Film is a temporary,yet
extremely effective way to protect your stainless steel from damage
throughout the fabrication, shippingand installation processes, keep stainless spotless and protect
your bottom line. Whether it isbrushed, bright annealed or mirror appearancesurfaces, you can always findabest solutionwith Haoen’s protective film.
The high gloss polyethyleneis used as the base material,attachedwith environment-friendly glue. It does not move glue, not
transformed and not fall off at a high temperature of65℃.
It is suitable for the laser cutting process for stainless steel
plate, galvanized sheet, all kinds of high-grade steel plate,
aluminum plate, etc.
Technical Data
Model
Base material
Thickness(um)
Color
Peel strength
(g/cm2)
Tensile strength((%)
Elongation at break(%)
Heat resistance
Microviscosity
polyethylene
45-100
Transparent,Blue,black&white
20
80-150
150-220
≤65℃
Low viscosity
polyethylene
45-100
Transparent,Blue,black&white
40
80-150
150-220
≤65℃
Medium high viscosity
polyethylene
45-100
Transparent,Blue,black&white
60-100
80-150
150-220
≤65℃
High viscosity
polyethylene
45-100
Transparent,Blue,black&white
120-200
80-150
150-220
≤65℃
Size information
Specification
Thickness(mm)
Width(mm)
Length(m)
Tube core inside diameter(mm)
0.02-0.15
20-1700
100-1500
76
Note:
1,The color can be customized according to your requirements.
2,logo can be printed on the film, the printing color is at most 3
colors.
3,The maximum width of 0.15mm thick film is 1250mm.
4,Our company can improve the aging resistance degree of the
original film according to the customer's requirement.

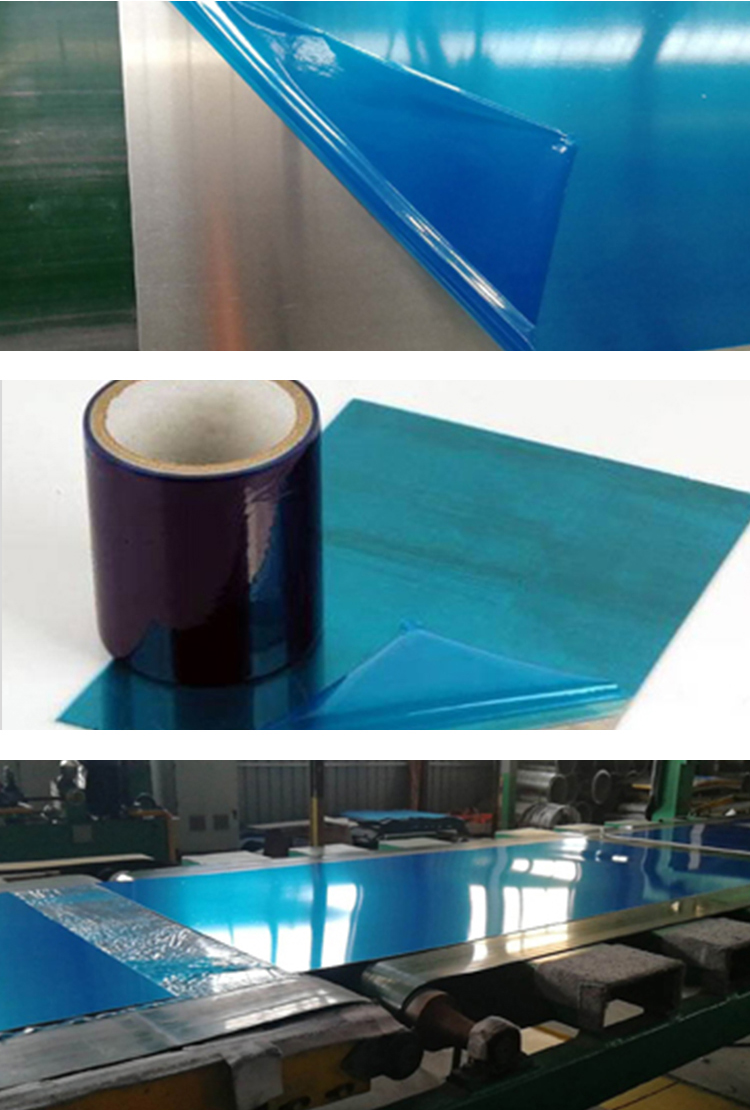

Product display
All colors are available
Test performance
Peeling force test: take a 180 degree peeling force test on the tension test machine,
measure three to five times, andtake the average number asareference.
Stickabilityperformancetest:easy to paste on the surface of the object, leave noresidual glueafter peeling off.
A. Bend90degrees,do not break, do not fall off.
B.Peel offthe filmafterPittsburghfilmtest ,there isno residueglue left, no damageto the film. UV-resistant degradation test: after60 hours of300WattUV-lamp irradiationat the temperature of50℃, it doesn'tcrack or deform. Andthereis no residue glue left when peeling off.
Wet and heat aging test:60℃+80%=240h. There is no residue glue after peeling down. The
surface will not be corroded .
Peeling force test:take a 180 degree peeling force test on the tension test machine,
measure three tofive times, andtake the average number asareference.
Application display
Production process
Factory tour
Packing display
Our company is located in Wuxi, only 40 minutes to Shanghai by
train. The convenient traffic condition enables us to provide our
protective film at a competitive price.
Roll is packed with air bubble film,one roll in one carton,then on
pallet.
FAQ
(1),Q:are you a trading company or manufacturer?
A:We are a factory. Our factory is located in Wuxi, Jiangsu province.
(2),Q: What are your main products?
A:Our main products are transparent film,white film ,blue film and
black&white film.It can protect numerous products to avoid
scratch, mark, damage and dirt at the process of bending, pressing,
roll forming, transportation and installation etc.
(3),Q:do you have a whole production line for protective film?
A:Yes,we have,such as :blowing mold,coating ,laminating,printing,slitting,etc.
(4),Q:how can I know your product is good enough to meet our
requirements.
A:(a)Our company has been manufacturing protective films for more than 8
years.
(b)We supply PE protective film for some top 10 aluminum or stainless steel maker in china.
(c)Free sample for testing.
(d)trained and professional technician team there ,after sales
service is offered.
Established in 2010, Wuxi Hao En Protective Film Co.,
Ltd specializes in the production of various kinds of surface
protective film with PE material, which is widely used in
stainless steel, aluminum plate&profile, home decoration
materials, carpet, window glass, color plate, plastic extrusion
parts and other products .
In addition to professional production and
testing equipment, our company also has excellent after-sales team
to provide product quality for customers.
The company's products are sold to overseas
countries such as North America, Europe, Southeast Asia and so on.
Used to be original equipment manufacturer for 3M, the company has
an annual production capacity of more than 40 million square
meters.
We firmly believe that your support and trust
is our motivation. Welcome new and old customers from all walks of
life to contact us for future business relationships and mutual
success.
